Coordinate Systems (3D)

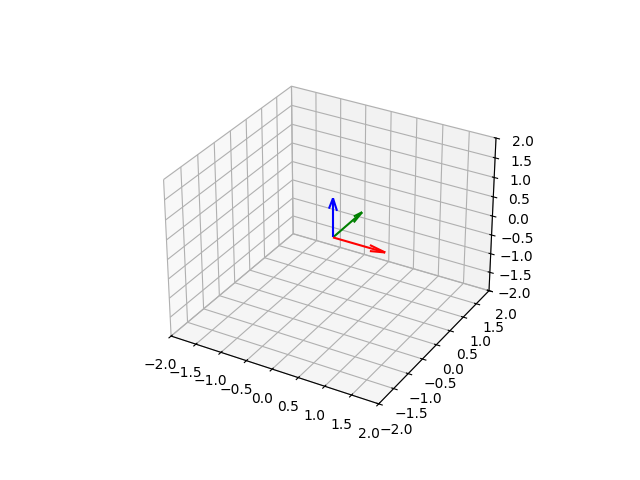

CoordinateSystem3D

A 3D coordinate system defined by three Direction3D axes and an origin Point3D. Internally it builds a 4×4 affine matrix for basis-change transforms.

import space.CoordinateSystem3D
import space.elements.Direction3D
import space.elements.Point3D
import units.Angle

// Standard right-handed Cartesian system
val standard = CoordinateSystem3D.MAIN_3D_COORDINATE_SYSTEM

// Custom coordinate system
val custom = CoordinateSystem3D(
    xDirection = Direction3D(1.0, 0.0, 0.0),
    yDirection = Direction3D(0.0, 0.0, 1.0),   // y-axis pointing "up" = world z
    zDirection = Direction3D(0.0, -1.0, 0.0),  // z-axis pointing "into" = world -y
    origin     = Point3D(1.0, 2.0, 0.0)
)

Properties

Member	Description
xDirection	Unit x-axis
yDirection	Unit y-axis
zDirection	Unit z-axis
origin	Origin point
matrix	3×3 rotation matrix
affineMatrix	4×4 affine transform matrix

Rotation

val sys = CoordinateSystem3D.MAIN_3D_COORDINATE_SYSTEM

// Rotate the system 45° around the z-axis
val rotated = sys.rotate(Direction3D.MAIN_Z_DIRECTION, Angle.Degrees(45.0))

---

Changing basis (3D)

Any Entity3D can be re-expressed in a different coordinate system:

val systemA = CoordinateSystem3D(
    xDirection = Direction3D.MAIN_X_DIRECTION,
    yDirection = Direction3D.MAIN_Z_DIRECTION,   // y → z
    zDirection = Direction3D.MAIN_Y_DIRECTION,   // z → y
    origin     = Point3D(1.0, 0.0, 0.0)
)

val point = Point3D(2.0, 0.0, 1.0)   // as written in systemA

val pointInMain = point.changeBasis(
    asWrittenIn = systemA,
    to          = CoordinateSystem3D.MAIN_3D_COORDINATE_SYSTEM
)

The computation is:

to.affineMatrix⁻¹ × asWrittenIn.affineMatrix × point.affineMatrix

---

Plane

A 3D plane defined by an origin point and two spanning directions. The normal direction is computed automatically as the cross product of the two span vectors.

import space.Plane
import space.elements.Direction3D
import space.elements.Point3D

val xzPlane = Plane(
    planeOrigin     = Point3D(0.0, 0.0, 0.0),
    planeXDirection = Direction3D.MAIN_X_DIRECTION,
    planeYDirection = Direction3D.MAIN_Z_DIRECTION
)

println(xzPlane.normalDirection)   // Direction3D(0, -1, 0) or (0, 1, 0)

// Check whether a point lies in the plane
println(xzPlane.pointIsInPlane(Point3D(3.0, 0.0, 5.0)))   // true
println(xzPlane.pointIsInPlane(Point3D(0.0, 1.0, 0.0)))   // false

As a coordinate system

Every Plane exposes a CoordinateSystem3D for basis changes:

val coordinateSystem: CoordinateSystem3D = xzPlane.coordinateSystem3D
